Sliding Partition Wall Accordion Walls Room Divider

Sliding Partition Wall Accordion Walls Room Divider

Merknaam:	AE
Modelnummer:	AE100
Moq:	10 vierkante meter
Prijs:	USD90-135Per Square Meter
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	1000 vierkante meter per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Certificering:

ISO9001 SGS

Model:

Verdeelmuren voor tentoonstellingen

Applicatie:

Banketzaal, vergaderzaal

Materiaal:

MDF, aluminium frame, stof

Afmetingen:

Aanpassing (hoogte: tot 18 m, breedte per paneel: tot 1,2 m)

Ontwerp:

OEM & ODM

Geluidsisolatie:

Max 56DB

Verpakking Details:

schuimlaag en hard karton met multiplex kast of stalen pallet

Markeren:

sliding partition wall room divider

accordion walls for exhibitions

portable exhibition partition walls

Productbeschrijving

Engineered Movable Partitions with Advanced Sealing System

Our movable partition walls are built for performance and durability. Featuring a robust internal Q235 steel frame and 6061-T6 aluminum profiles, panels are available in 68mm, 89mm, and 105mm thicknesses. The core of our system is an advanced sealing mechanism, with a jack lifting system that provides 800N of sealing force and magnetic seals offering 40N/m attraction. Operation is smooth and reliable thanks to precision CNC-machined 304 stainless steel rollers and a patented wheel design. We provide full submittal drawings and value-engineered alternatives for any project.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

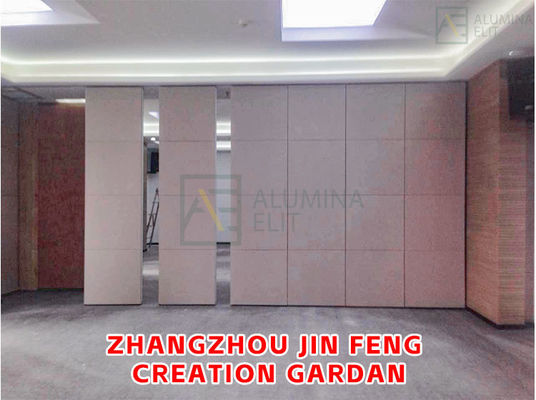

PROJECT:

Sliding Partition Wall Accordion Wall
