Collapsible Operable Acoustic Partition Wall with Up to 18M Height and Max 56dB Sound Insulation

Merknaam:	AE
Modelnummer:	AE100
Moq:	10 vierkante meter
Prijs:	USD 80-108 Per Square Meter
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	1000 vierkante meter per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Certificering:

ISO9001 SGS

Productnaam:

Houten scheidingsmuren

Afwerkingsoptie:

Materialen die door de klant worden geleverd

Open stijl:

Glijdend

Hoogte:

Tot 18M

Ontwerp:

OEM & ODM

Geluidsisolatie:

Max 56DB

Verpakking Details:

schuimlaag en hard karton met multiplex kast of stalen pallet

Markeren:

Up to 18M Height Acoustic Partition Wall

Max 56dB Sound Insulation Movable Partition Wall

6061-T6 Profile Operable Partition Wall

Productbeschrijving

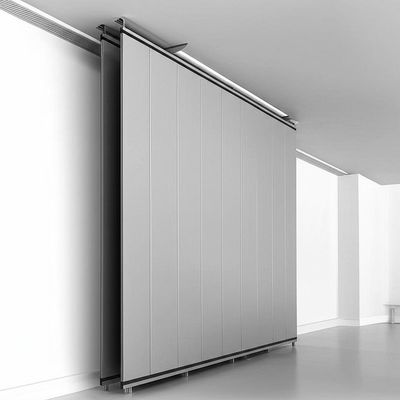

Collapsible Operable Acoustic Partition Wall For Auditorium Sound Insulation

Movable partition walls offer a versatile solution for flexible space management, allowing rooms to be easily adjusted in size to meet various needs. Whether it's for conference rooms, school classrooms, or large exhibition halls, these partitions can be customized with single or double inset pass doors, glazing panels, and a wide range of track configurations and surface finishes. Melamine is a popular choice for its durability and aesthetic appeal.

These partitions are also available in fire-resistant options, offering 30 or 60 minutes of protection. Choose between manual or semi-automatic operation to suit your convenience.

Operation

Our movable partition walls feature continuously hinged panels that effortlessly slide from their parked position to create a closed or extended wall. To open or fold the wall, simply push the panels back to their parked position. For precise alignment, the system uses a pneumatic gas piston in the top track to ensure a smooth, flat finish.

Each lead panel is equipped with a lever or recessed handle, and a vertical rebated profile to function as a pass door. This door option is available with or without a lock cylinder, providing flexibility to meet your security needs.

Roller Option & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Features

Thickness: 68mm & 89mm & 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Dimensions in mm*	Design
Series	Element thickness
AE65	68
AE85	89
AE100	105

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
