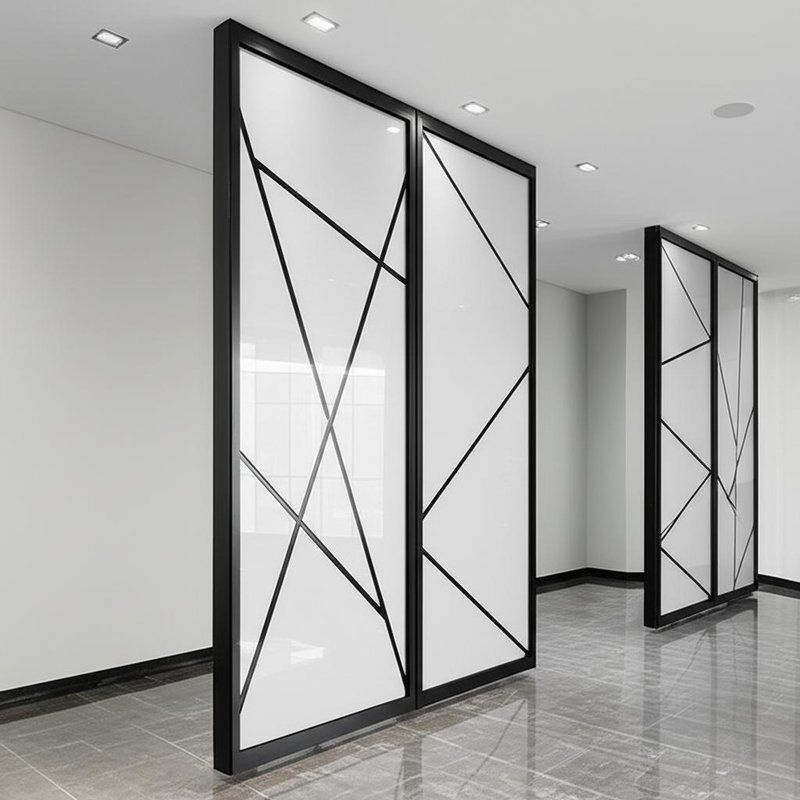

Sliding Acoustic Partition Wall with Glass Finish Customizable Dimensions and OEM & ODM Design

Merknaam:	AE
Modelnummer:	AE100
Moq:	10 vierkante meter
Prijs:	USD90-135Per Square Meter
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:	1000 vierkante meter per maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Guangdong, China

Certificering:

ISO9001 SGS

Product:

Acoustisch scheidingsmuursysteem

Applicatie:

Ziekenhuis, kantoorgebouw

Honkbord:

Materialen die door de klant worden geleverd

Afmetingen:

Aanpassing (hoogte: tot 18 m, breedte per paneel: tot 1,2 m)

Ontwerp:

OEM & ODM

Geluidsisolatie:

Max 56DB

Verpakking Details:

schuimlaag en hard karton met multiplex kast of stalen pallet

Markeren:

Glass Finish Sliding Acoustic Partition Wall

Customizable Dimensions Movable Partition Wall

OEM & ODM Design Operable Partition Wall

Productbeschrijving

Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish

Sliding Acoustic Partition Wall Systems with Glass Finish for Global Solutions

Maximize your room's potential with our modular movable partitions. Designed for easy assembly and disassembly, these folding partitions are perfect for temporary or permanent space solutions.

Our manually operated partition system is composed of several panels that are easy to move and position by hand. No special tools are required—simply use the operating handle to lock the panels and activate the mechanical seals for effective acoustic insulation.

Key Features and Services

German Partition Technology Global Professional Space Solutions
Site inspections and project experience with heavy customers
Highly competitive prices with fast response to construction issues
Controlled delivery times for decent orders
Comprehensive OEM & ODM services tailored to specific needs
Product specifications and value-engineered alternatives
Submittal drawings provided

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options & Features

Available thicknesses: 68mm, 89mm, 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m attraction

Technical Specifications

Series	Element thickness (mm)	Element width* (min/max)	Clear height* (min/max)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
